Convolution

Generate synthetic data

Generate some simulated spike counts.

import matplotlib.patches as patches
import matplotlib.pylab as plt
import numpy as np

import nemos as nmo

np.random.seed(10)
ws = 10
# samples
n_samples = 100

spk = np.random.poisson(lam=0.1, size=(n_samples, ))

# add borders (extreme case, general border effect are represented)
spk[0] = 1
spk[3] = 1
spk[-1] = 1
spk[-4] = 1

Convolution in "valid" mode

Generate and plot a filter, then execute a convolution in “valid” mode for all trials and neurons. In nemos, you can use the tensor_convolve function for this.

Note

The "valid" mode of convolution only calculates the product when the two input vectors overlap completely, avoiding border artifacts. The outcome of such a convolution will be an array of max(M,N) - min(M,N) + 1 elements in length, where M and N represent the number of elements in the arrays being convolved. For more detailed information on this, see jax.numpy.convolve.

# create three filters
basis_obj = nmo.basis.RaisedCosineLinearEval(n_basis_funcs=3)
_, w = basis_obj.evaluate_on_grid(ws)

plt.plot(w)

spk_conv = nmo.convolve.tensor_convolve(spk, w)

# valid convolution should be of shape n_samples - ws + 1
print(f"Shape of the convolution output: {spk_conv.shape}")

Shape of the convolution output: (91, 3)

Causal, Anti-Causal, and Acausal filters

NaN padding appropriately the output of the convolution allows to model causal, anti-causal and acausal filters. A causal filter captures how an event or task variable influences the future firing-rate. An example usage case would be that of characterizing the refractory period of a neuron (i.e. the drop in firing rate immediately after a spike event). Another example could be characterizing how the current position of an animal in a maze would affect its future spiking activity.

On the other hand, if we are interested in capturing the firing rate modulation before an event occurs we may want to use an anti-causal filter. An example of that may be the preparatory activity of pre-motor cortex that happens before a movement is initiated (here the event is. “movement onset”).

Finally, if one wants to capture both causal and anti-causal effects one should use the acausal filters. Below we provide the function create_convolutional_predictor that runs the convolution in “valid” mode and pads the convolution output for the different filter types.

# pad according to the causal direction of the filter, after squeeze,
# the dimension is (n_filters, n_samples)
spk_causal_conv = nmo.convolve.create_convolutional_predictor(
        w, spk, predictor_causality="causal"
)
spk_anticausal_conv = nmo.convolve.create_convolutional_predictor(
        w, spk, predictor_causality="anti-causal"
)
spk_acausal_conv = nmo.convolve.create_convolutional_predictor(
        w, spk, predictor_causality="acausal"
)

/home/docs/checkouts/readthedocs.org/user_builds/nemos/envs/stable/lib/python3.11/site-packages/nemos/convolve.py:188: UserWarning: With `acausal` filter, `basis_matrix.shape[0] should probably be odd, so that we can place an equal number of NaNs on either side of input.
  warnings.warn(

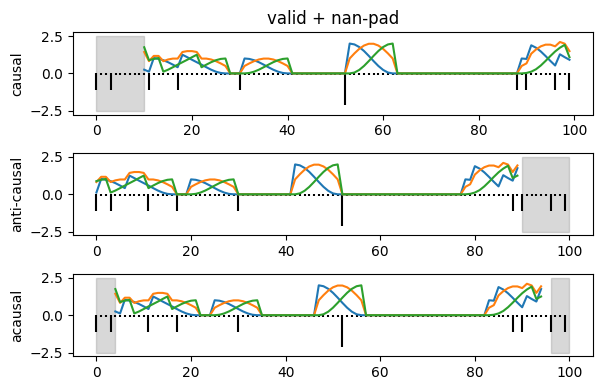

Plot the results

# NaN padded area
rect_causal = patches.Rectangle((0, -2.5), ws, 5, alpha=0.3, color='grey')
rect_anticausal = patches.Rectangle((len(spk)-ws, -2.5), ws, 5, alpha=0.3, color='grey')
rect_acausal_left = patches.Rectangle((0, -2.5), (ws-1)//2, 5, alpha=0.3, color='grey')
rect_acausal_right = patches.Rectangle((len(spk) - (ws-1)//2, -2.5), (ws-1)//2, 5, alpha=0.3, color='grey')

# Set this figure as the thumbnail
# mkdocs_gallery_thumbnail_number = 2

fig = plt.figure(figsize=(6, 4))

shift_spk = - spk - 0.1
ax = plt.subplot(311)

plt.title('valid + nan-pad')
ax.add_patch(rect_causal)
plt.vlines(np.arange(spk.shape[0]), 0, shift_spk, color='k')
plt.plot(np.arange(spk.shape[0]), spk_causal_conv)
plt.ylabel('causal')

ax = plt.subplot(312)
ax.add_patch(rect_anticausal)
plt.vlines(np.arange(spk.shape[0]), 0, shift_spk, color='k')
plt.plot(np.arange(spk.shape[0]), spk_anticausal_conv)
plt.ylabel('anti-causal')

ax = plt.subplot(313)
ax.add_patch(rect_acausal_left)
ax.add_patch(rect_acausal_right)
plt.vlines(np.arange(spk.shape[0]), 0, shift_spk, color='k')
plt.plot(np.arange(spk.shape[0]), spk_acausal_conv)
plt.ylabel('acausal')
plt.tight_layout()

Show code cell source Hide code cell source

# save image for thumbnail
from pathlib import Path
import os

root = os.environ.get("READTHEDOCS_OUTPUT")
if root:
   path = Path(root) / "html/_static/thumbnails/background"
# if local store in ../_build/html/...
else:
   path = Path("../_build/html/_static/thumbnails/background")

# make sure the folder exists if run from build
if root or Path("../assets/stylesheets").exists():
   path.mkdir(parents=True, exist_ok=True)

if path.exists():
  fig.savefig(path / "plot_03_1D_convolution.svg")

Convolve using Basis.compute_features

Every basis in the nemos.basis module whose class name ends with “Conv” will perform a 1D convolution over the provided input when the compute_features method is called. The basis elements will be used as filters for the convolution.

All the parameters of create_convolutional_predictor can be passed to the object directly at initialization. Let’s see how we can get the same results through Basis.

# define basis with different predictor causality
causal_basis = nmo.basis.RaisedCosineLinearConv(
        n_basis_funcs=3, window_size=ws,
        conv_kwargs=dict(predictor_causality="causal")

)

acausal_basis = nmo.basis.RaisedCosineLinearConv(
        n_basis_funcs=3, window_size=ws,
        conv_kwargs=dict(predictor_causality="acausal")
)

anticausal_basis = nmo.basis.RaisedCosineLinearConv(
        n_basis_funcs=3, window_size=ws,
        conv_kwargs=dict(predictor_causality="anti-causal")
)

# compute convolutions
basis_causal_conv = causal_basis.compute_features(spk)
basis_acausal_conv = acausal_basis.compute_features(spk)
basis_anticausal_conv = anticausal_basis.compute_features(spk)

/home/docs/checkouts/readthedocs.org/user_builds/nemos/envs/stable/lib/python3.11/site-packages/nemos/basis/_basis_mixin.py:326: DeprecationWarning: `newshape` keyword argument is deprecated, use `shape=...` or pass shape positionally instead. (deprecated in NumPy 2.1)
  return np.reshape(conv, newshape=(conv.shape[0], -1))
/home/docs/checkouts/readthedocs.org/user_builds/nemos/envs/stable/lib/python3.11/site-packages/nemos/convolve.py:188: UserWarning: With `acausal` filter, `basis_matrix.shape[0] should probably be odd, so that we can place an equal number of NaNs on either side of input.
  warnings.warn(
